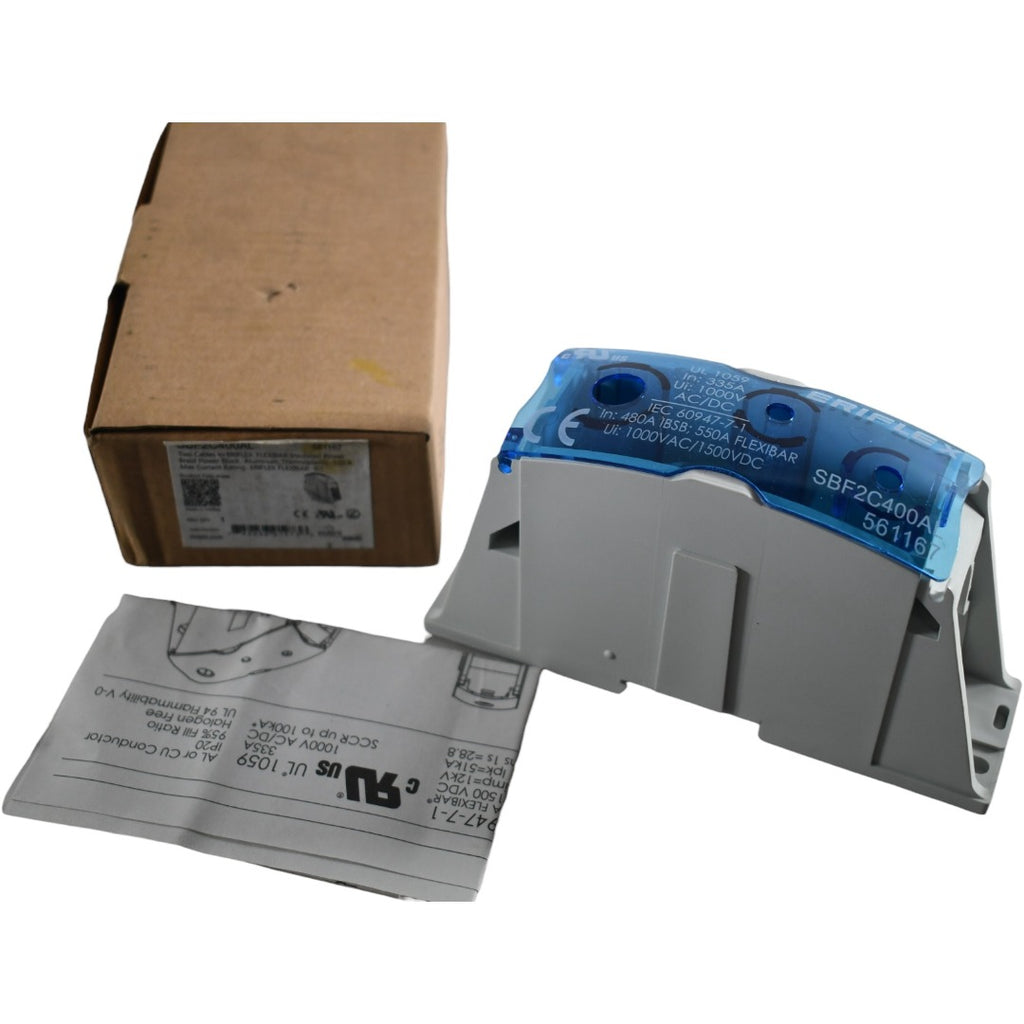

NEW nVent ERIFLEX SBF2C400AL 561167 Power Block Flexibar to 2 Cables 400A Terminal

  • Vendor:nVent
We currently have 3 in stock.
Availability: In Stock
$64.99

NEW nVent ERIFLEX SBF2C400AL 561167 Power Block Flexibar to 2 Cables 400A Terminal

  • Brand: nVent ERIFLEX

  • Part Number / Catalog Number: 561167

  • Model Code: SBF2C400AL

  • Current Capacity Rating: 335 A (UL 1059 Typical Ampacity) / 480 A IBSB / 550 A FLEXIBAR (IEC)

  • Voltage Rating Limits: 1000 V AC/DC (UL) / 1000 V AC and 1500 V DC (IEC 60947-7-1)

  • Terminal Input / Output Configuration: Direct line input interface optimized for ERIFLEX FLEXIBAR flat ribbon or insulated power braids to 2 standard distribution load cable outputs

  • Housing Features & Ingress Rating: IP20 protection design profile, halogen-free construction, 95% fill ratio efficiency, and an UL 94 Flammability V-0 rated thermoplastic modular assembly with clear blue protective inspection cover

  • Material Composition: Premium tinned aluminum conductive block module core structure

  • Mounting Configuration: Universal chassis panel mounting or standard integrated DIN rail track snap assembly pattern

    NOS, surplus
