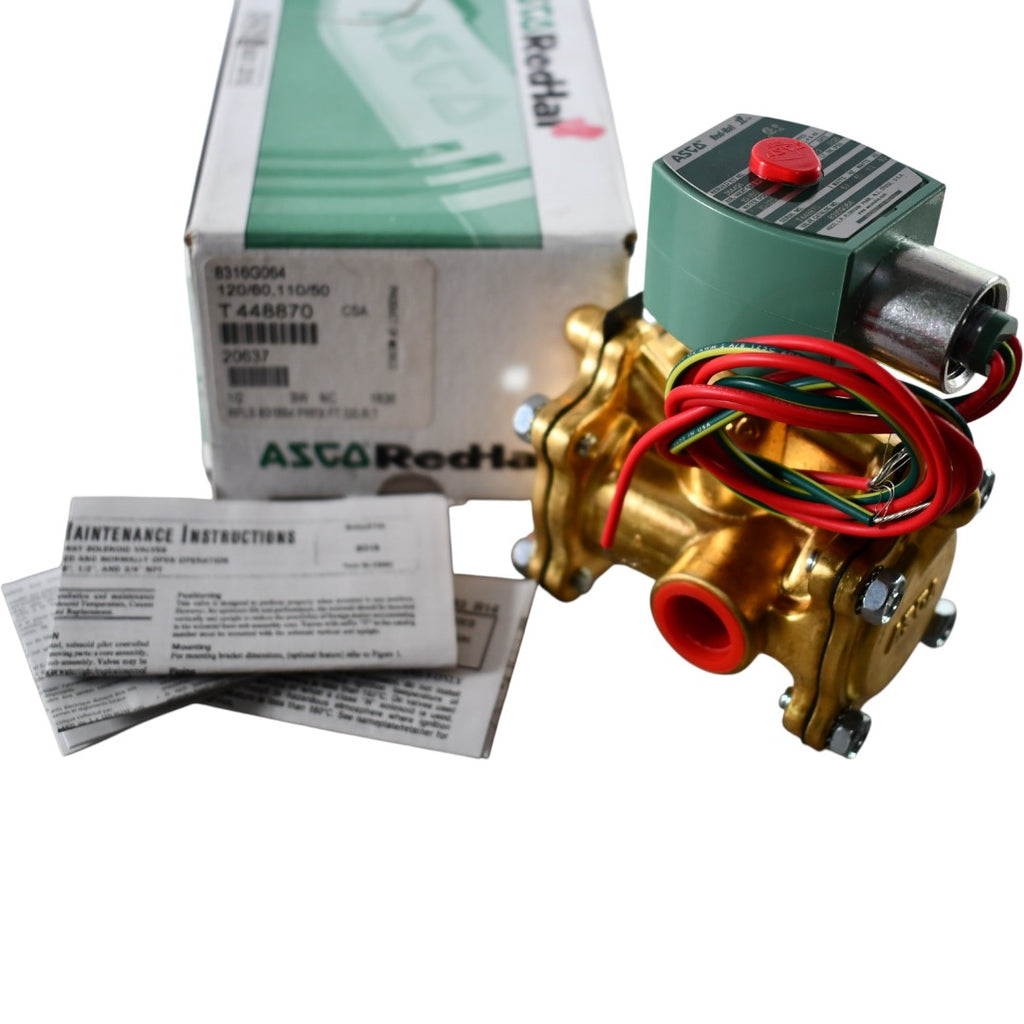

NEW ASCO RedHat 8316G064 Solenoid Valve 3W NC 1/2 In 120/60 110/50 Brass Valve

NEW ASCO RedHat 8316G064 Solenoid Valve 3W NC 1/2 In 120/60 110/50 Brass Valve

Manufacturer: ASCO (RedHat II Series 8316)
Valve type: 3-Way Normally Closed (3W NC) Pilot Operated Diaphragm Poppet
Pipe size: 1/2 inch NPT
Orifice size: 5/8 inch
Flow factor: 3.2 Cv
Voltage rating: 120 V AC at 60 Hz, 110 V AC at 50 Hz
Power consumption: 6.1 W (60 Hz), 8.1 W (50 Hz)
Pressure rating (Air/Inert Gas): 10 to 150 PSI
Pressure rating (Water): 10 to 125 PSI
Body material: Brass
Seal material: Buna-N (NBR)
Enclosure type: NEMA 1, 2, 3, 3S, 4, 4X (General Purpose & Watertight)
