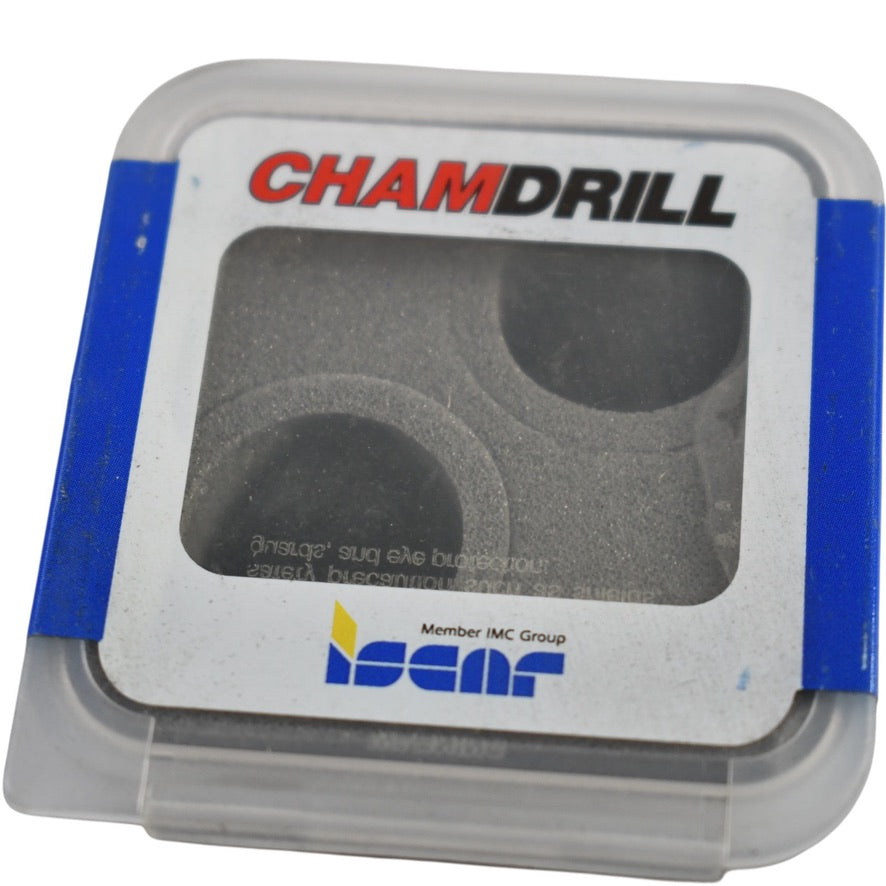

Pack of 2 NEW Iscar IDI 099-SG IC908 IDI 0390-SG Chamdrill Drill Heads Inserts

SKU:
Vendor:Iscar

We currently have 11 in stock.

Availability: In Stock

$80.95

Description

Pack of 2 NEW Iscar IDI 099-SG IC908 IDI 0390-SG Chamdrill Drill Heads Inserts

EDP ordering code: 05505098 (also formatted as 5505098)
Brand: Iscar
Series: Chamdrill Indexable Drilling System
Drill tip diameter: 9.90 mm (0.3900 in)
Number of flutes: 2 flutes
Point geometry: 140 degree included angle thinned web point (SG geometry)
Insert seat size code: 9 (Twist-Lock mounting layout)
Material grade: Submicron solid carbide base substrate
Coating and finish: Physical vapor deposition (PVD) TiAlN multi-layer coating
Primary applications: High-performance drilling across P15-P30 (Steel) and K20-K40 (Cast Iron) workpiece groups

NOS, surplus
