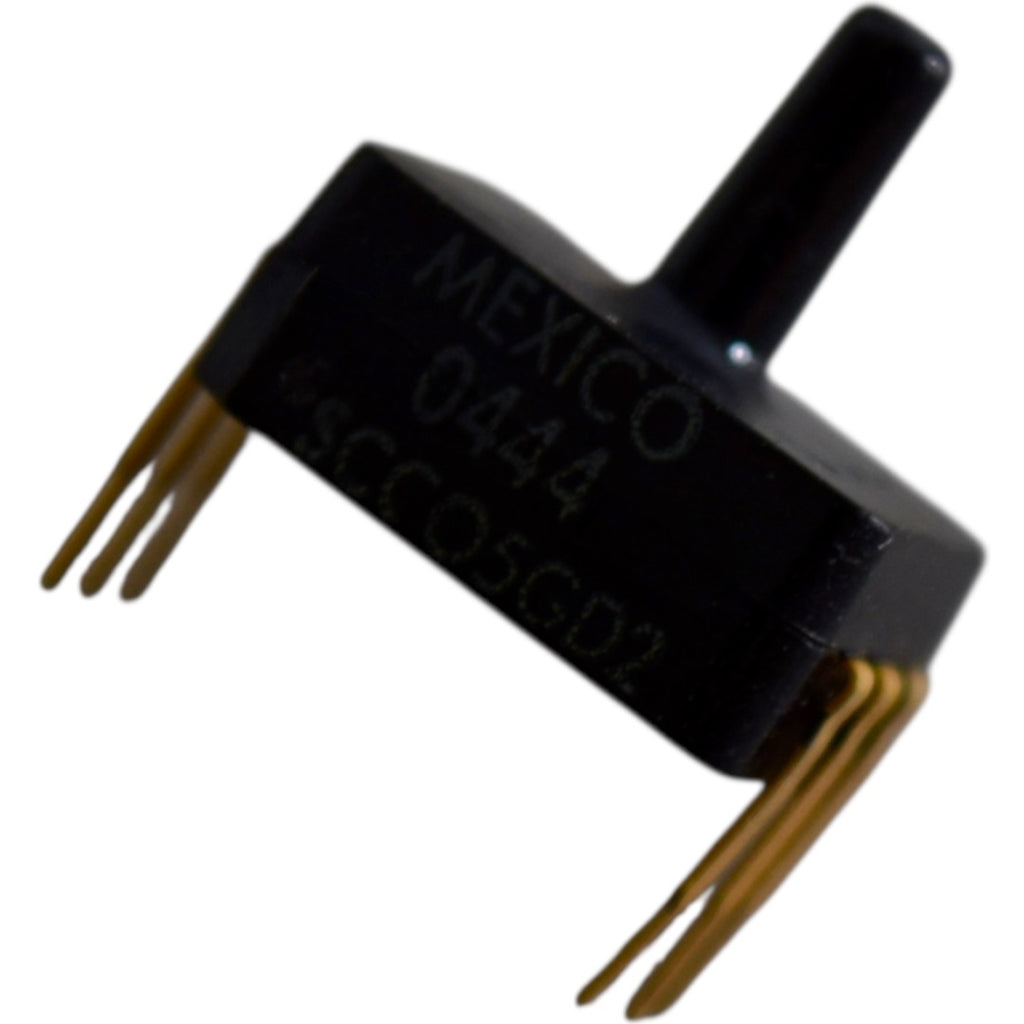

SenSym Honeywell SCC05GD2 Pressure Sensor 0-5 PSIG Compensated 6-DIP
- Vendor:SenSym Honeywell
SenSym Honeywell SCC05GD2 Pressure Sensor 0-5 PSIG Compensated 6-DIP
Manufacturer: SenSym / Honeywell Sensing & Control Part Number: SCC05GD2 Date Code / Markings: 0444 / MEXICO Series: SCC Series Temperature Compensated Pressure Sensors Pressure Type & Range: 0 to 5 PSIG (Gage / Vented Gauge) Signal Conditioning: Unamplified, Internally Temperature Compensated Supply Voltage: Up to 12 VDC Max (3 VDC to 12 VDC Nominal) Output Signal: 25 mV to 65 mV Full Scale Span (Wheatstone Bridge) Port Configuration: "D2" Package Vertical / Top Straight Barbed Port (0.11" / 2.67 mm Tube) Mounting / Termination: 6-Pin DIP Module (PC Board Through-Hole Mount, Formed Leads)
Product Details
| Brand | SenSym Honeywell |
|---|---|
| Part number | SCC05GD2 |
| Category | Sensors |
| Condition | Used |
| Shipping | Free shipping · Ships same day if ordered by 2PM PST |
| Returns | 60-day returns |
This SenSym Honeywell part, part number SCC05GD2, is used and may show signs of previous installation or handling. See the listing photos for its exact condition.
